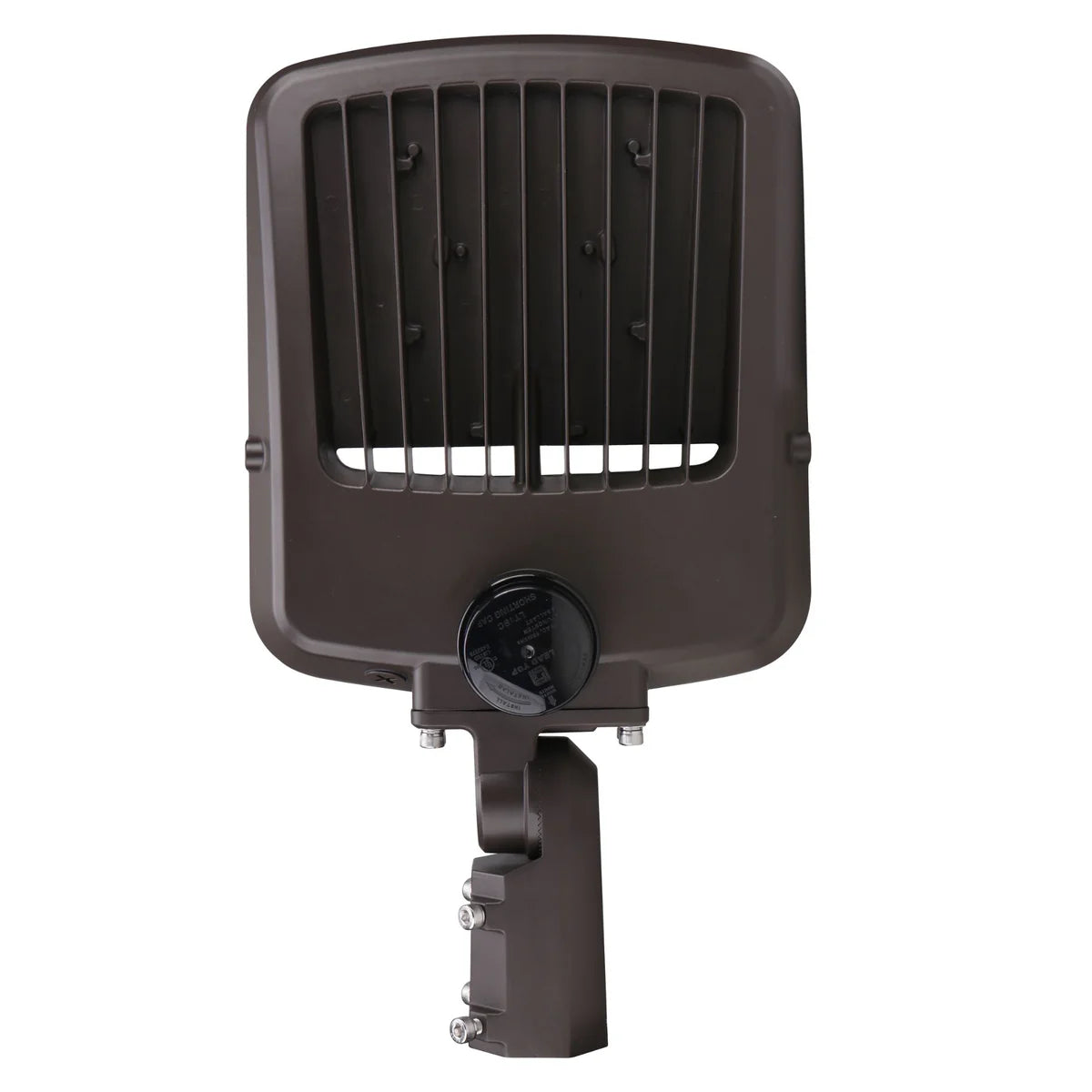

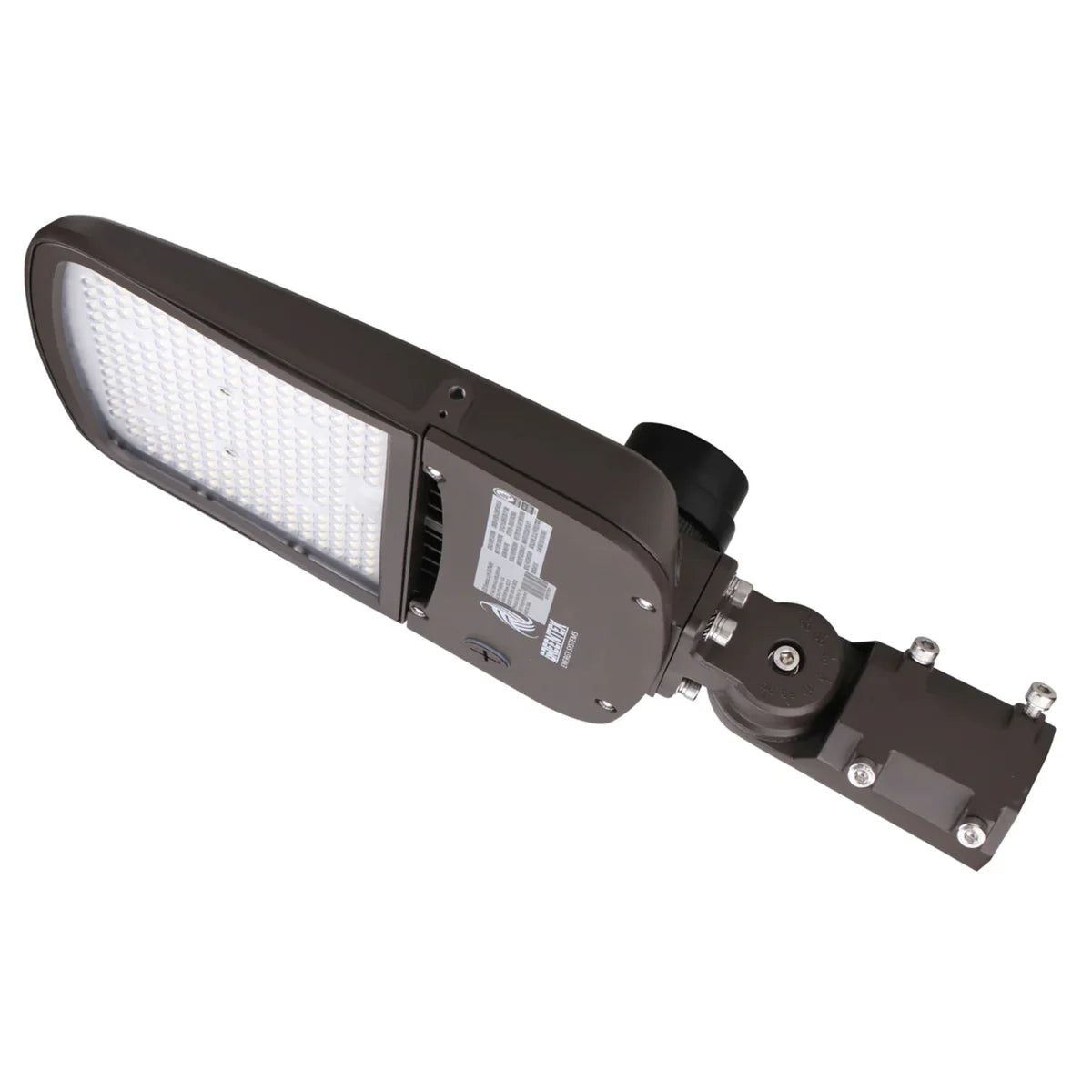

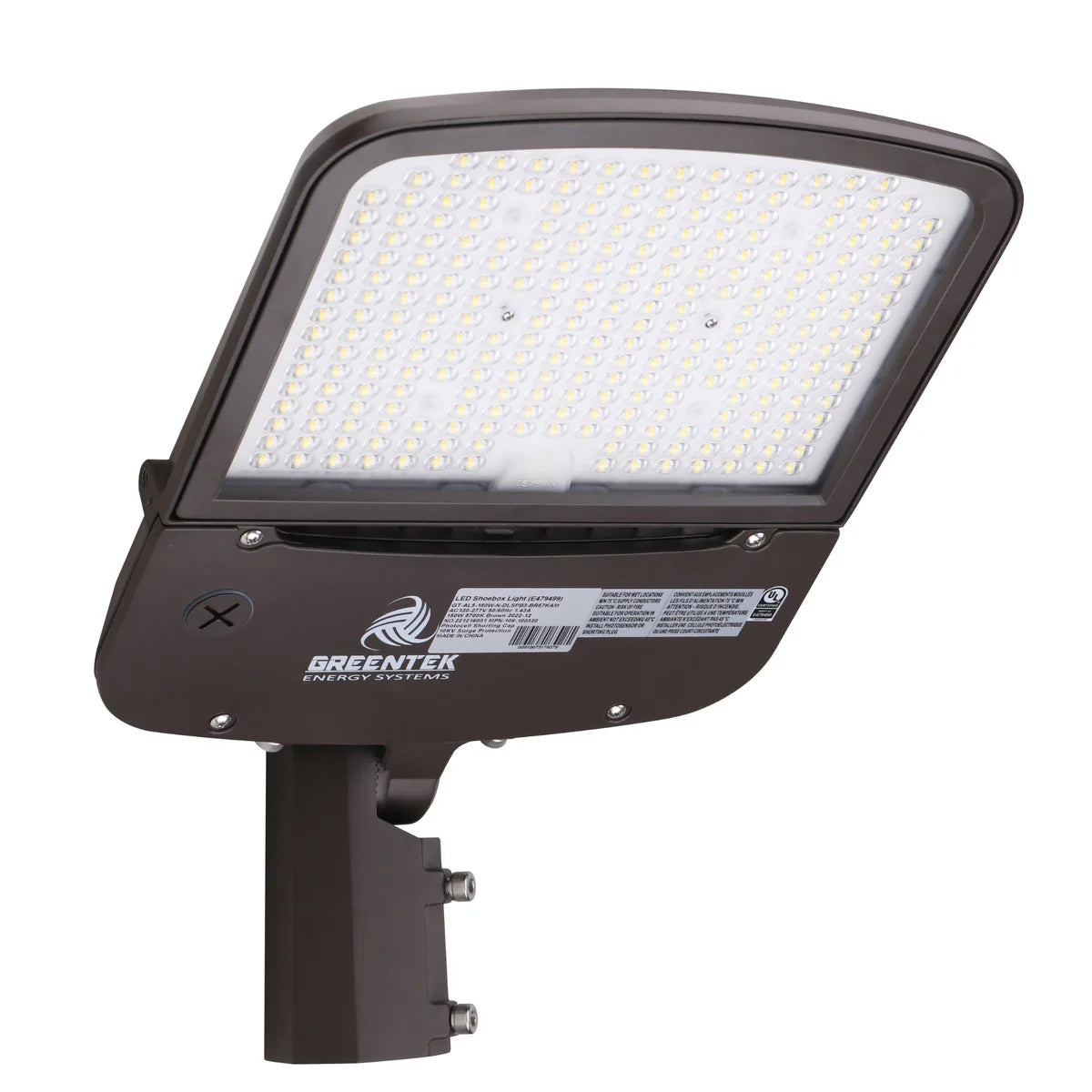

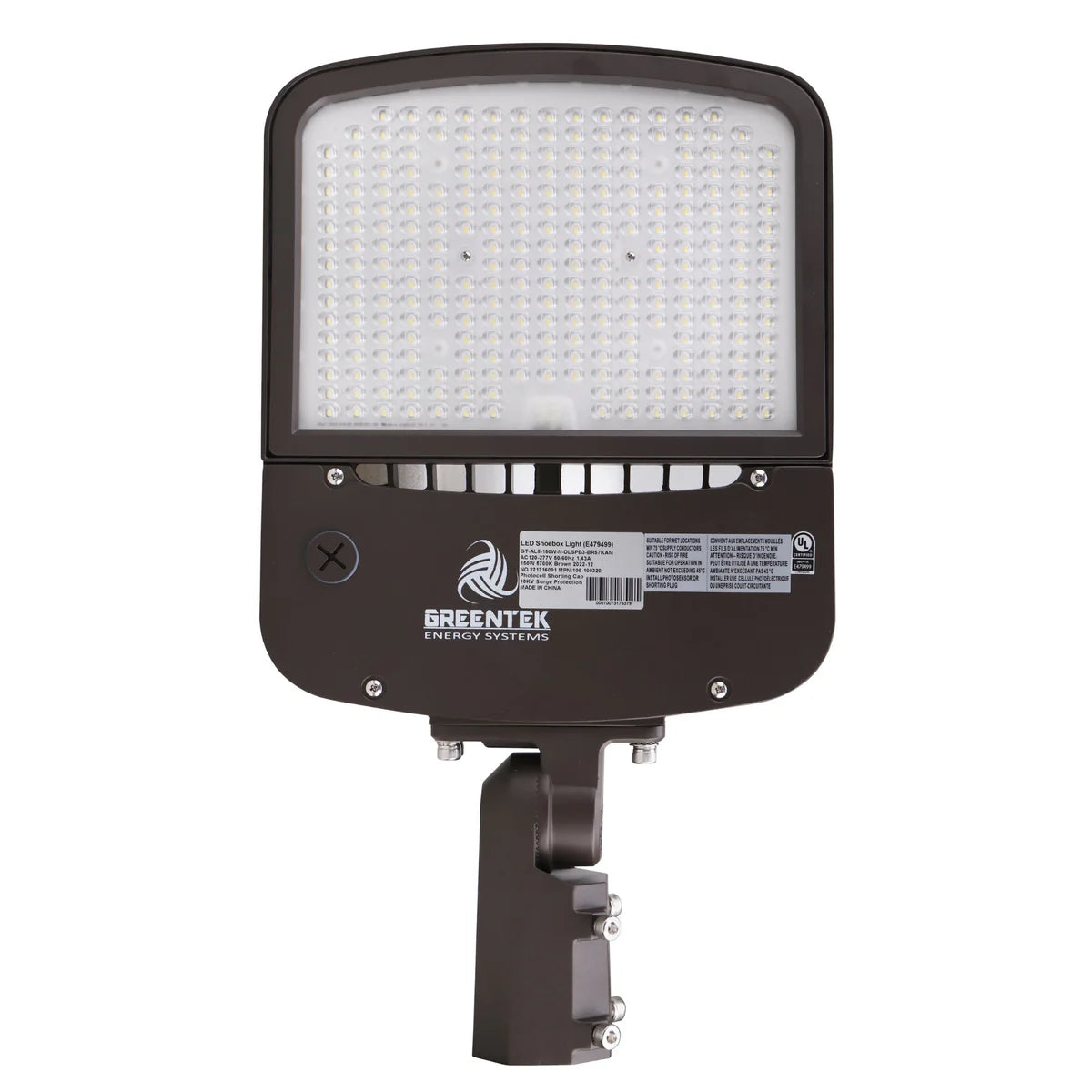

150W LED Street Outdoor Stadium Light Show Box Slip Fitter 5700K DLC
The outdoor LED Luminaire uses the latest in solid state lighting technology for long life, low maintenance, and high efficiency. These lights are the top of the line in quality and price. With SEOUL LED and a SMDSOSEN Driver, the fixtures are guaranteed up to 5 years. The lights produce over 140 lumens/watt.

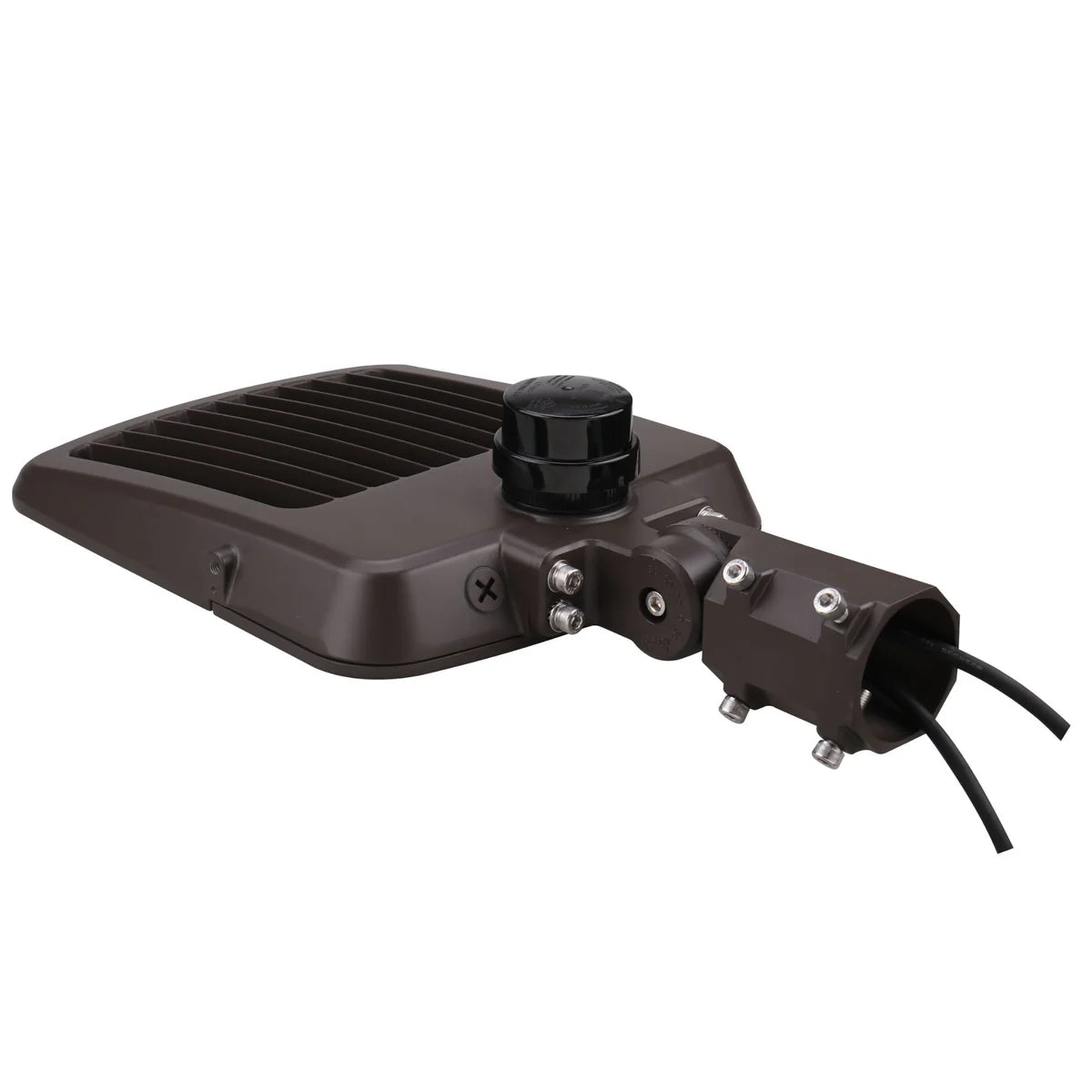

The superior design of the S series provides a sturdy, IP65 grate build, which has the fixture at the top of its class. The lights also have adjustable mounting functions which consist of a shoebox, yoke, slip fitter, and typical street light horizontal mount.
1. Please turn off power before installing or changing assembly parts.
2. The input voltage and lamps should be matched, after connecting the power line.
3. Please make sure the wiring section is insulated.
4. Professionals should only install and disassemble the lamps.
Street / Parking Lots / Outdoor Basketball / Tennis Courts / Football Field / School Playgrounds / Stadium
Certification: UL, cUL, DLC
Lumens Efficacy: 140 LM/W
Input Voltage: 100 - 277VAC 50/60Hz
Beam Angle: 150*190 Degree(Type Ⅲ）
Lifespan: 50,000 hours
Driver: HLG-320H-48B*2 (1-10Vdc Dimmer)
Weight: 13.66 Ibs
Shipping Weight: 15.21lbs
Power Factor (PF): ≥0.9
LED Type: SMD3030
Housing: Aluminum Alloy
Housing color: Brown
Operating Temperature: --4ºF TO 122ºF
Operating Humidity: 10%-90% RH
Dimension: 23.07in x 13.46in x 4.3in
Shipping Dimensions: 640mm x 395mm x 180mm
IP Grate: IP65
Warranty: 5 years
